Material (Shim & Wire Stock)

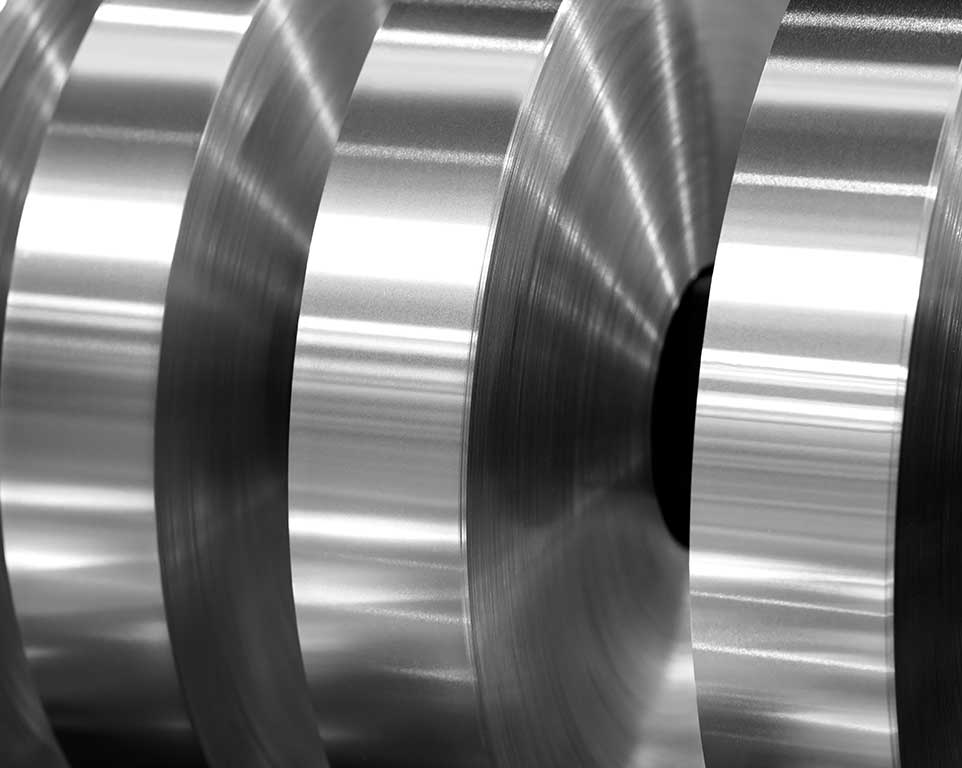

We can process shim and wire stock from coil of material into each roll or sheet of with the thickness, material, size and weight available at request.

Stainless Steel Shim Material:
SUS 301 / AISI 301 / EN 1.4310		 High Carbon Steel Shim Material:
SK5 / AISI 1080		 Shim Material:
SK5 / AISI 1080
Thickness:
Thickness from 0.025mm to 2mm		 Thickness:
Thickness from 0.05mm to 3mm		 Thickness:
Thickness from 1mm - 6mm
Surface Finish:
BA (Bright Annealed)		 Surface Finish:
Hardened & Tempered (Blue) 		 Surface Finish:
Annealed (Grey)
Hardness:
HV 420 - 600		 Hardness:
HRC 40-45		 Hardness:
HV 200 (Thickness 2mm to 6mm)

Stainless Steel Spring Wire:
SUS 304 WPB / JIS G4314 / ASTM 313 / AISI 304 / EN 1.4301		 Music / Piano (High Carbon Steel Wire):
JIS G3522 / ASTM A228 / AISI 1086 / DIN 1.1269		 Hard Drawn SWC (High Carbon Steel Wire):
JIS G3521 / ASTM A227 / AISI 1065 / DIN 1.123
Thickness:
0.15mm to 8mm		 Thickness:
0.15mm to 4mm		 Thickness:
0.2mm to 12.50mm
Surface Finish:
Soap Coat / Nickel Plate		 Surface Finish:
None		 Surface Finish:
None
Minimum Tensile Strength (MTS) psi x 103:
125 - 325
